Digital I/O to Ethernet Coverter
BASSO-1040TL/DIO
– Industrial Digital I/O to Ethernet Converter
– 10/100M LAN port (supporting MDI, MDI-X)
– Configuration utility BASSO-IO Config provided
– Web-based configuration available
– Can choose a total of 4 channels in the following
combinations:
DI * 4 channels, DO * 4 channels or
DI * 2 channels & DO * 2 channels.
– DI (Digital Input): Supports 4 channels (Dry & Wet Contact)
– DO (Digital Output): Supports 4 channels (sink)
– DIO Port features 1.5KVrms isolation for 1 minute
– DIO Port operates on 12 ~ 24V (Terminal Block) power supply
– Modbus Protocol available (supports Modbus TCP, RTU/ASCII)
– Incorporated ±15kV ESD protection feature

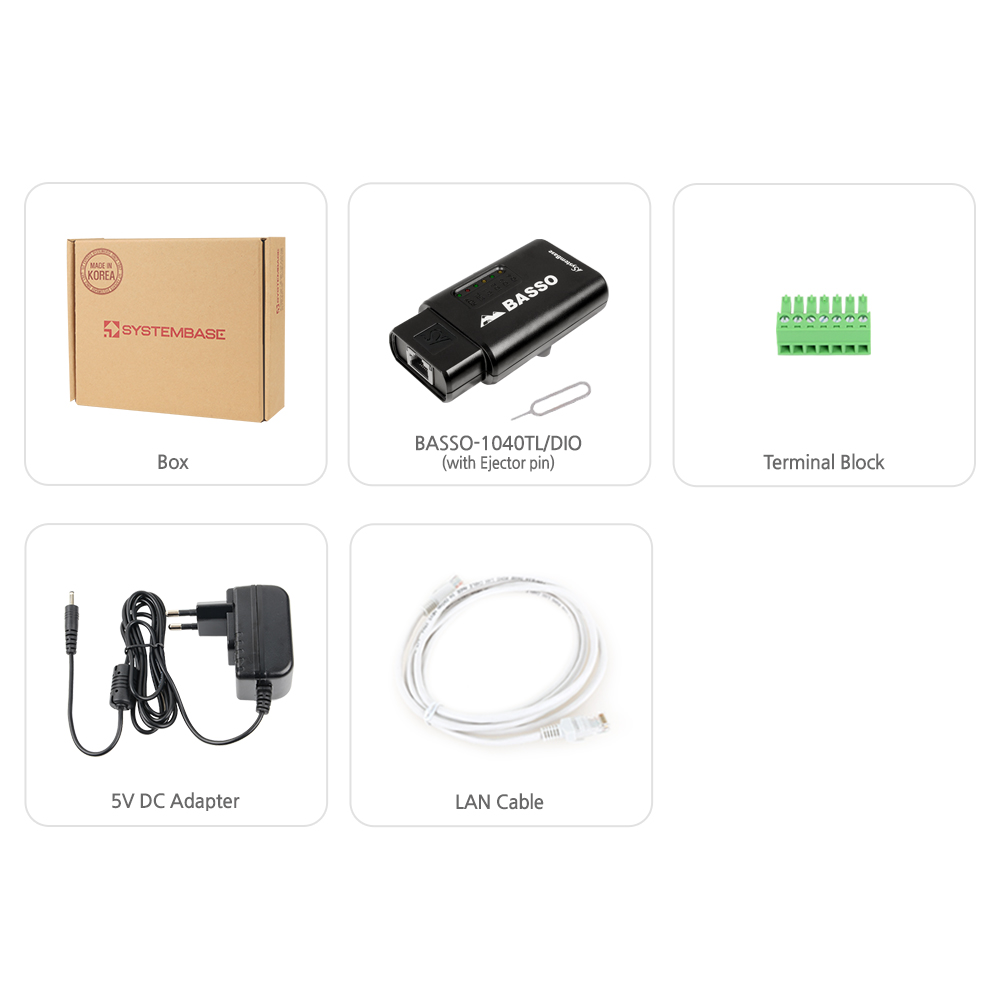

– Operating power: 5 ~ 24V DC, 1A (5V 1A Adapter provided)
– Industrial operating temperature range: -40 ~ 85℃ supported
Overview
BASSO-1040TL/DIO is an Ethernet to DIO converter widely used in industrial fields, connecting digital input and output devices to contact switches, sensors, measuring instruments, or control devices via Ethernet. In industrial settings such as factories, digital input and output devices are utilized for various purposes such as communication with PLCs or controlling and measuring machinery and equipment. BASSO-1040TL/DIO enables remote control and monitoring of digital I/O devices connected through a network (TCP/IP). With Modbus TCP protocol integration, it provides reliable communication tailored to various user environments. This multi-functional device offers robust functionality.
Network-based control of Digital I/O devices
By connecting digital sensors and measuring devices to the network (TCP/IP), BASSO-1040TL/DIO enables monitoring and remote control of digital I/O devices from anywhere on the network. With support for Modbus TCP protocol, it can perform various functions required in different user environments.
High performance and excellent reliability
BASSO-1040TL/DIO is designed considering the challenging conditions of unstable industrial environments. It incorporates measures to prevent electrical shocks such as overvoltage from entering through the input/output and serial ports. It also utilizes high-quality components to ensure both excellent reliability and high performance.
Support for various software utilities
BASSO-1040DT/DIO provides a free utility program that can be used with it.
BASSO-IO Config is a user-friendly configuration utility designed for Windows. It offers easy and convenient configuration capabilities, allowing users to quickly set up the device according to their requirements.
