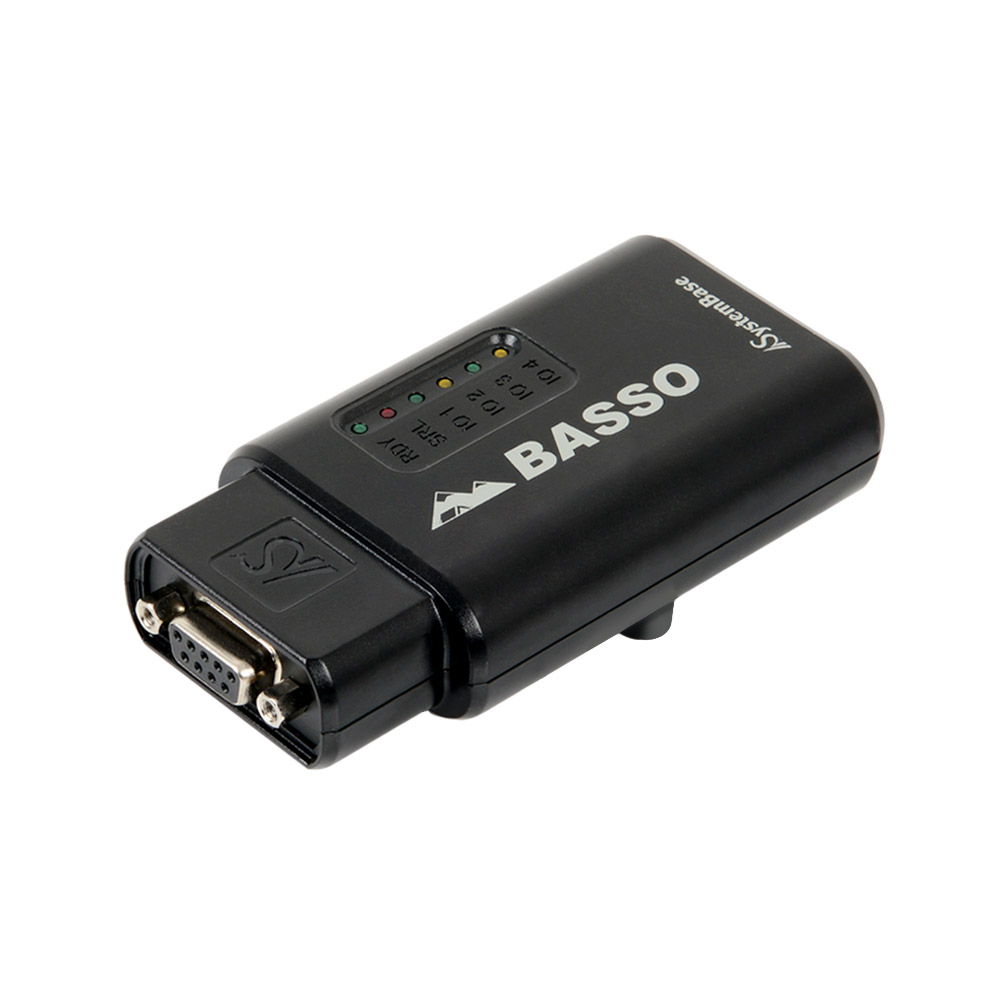

Analog Input to Serial Converter
BASSO-1040DT/AI
– Supports Modbus Serial
– Analog Input to Serial Converter
– Serial Communication Speed up to 921.6Kbps

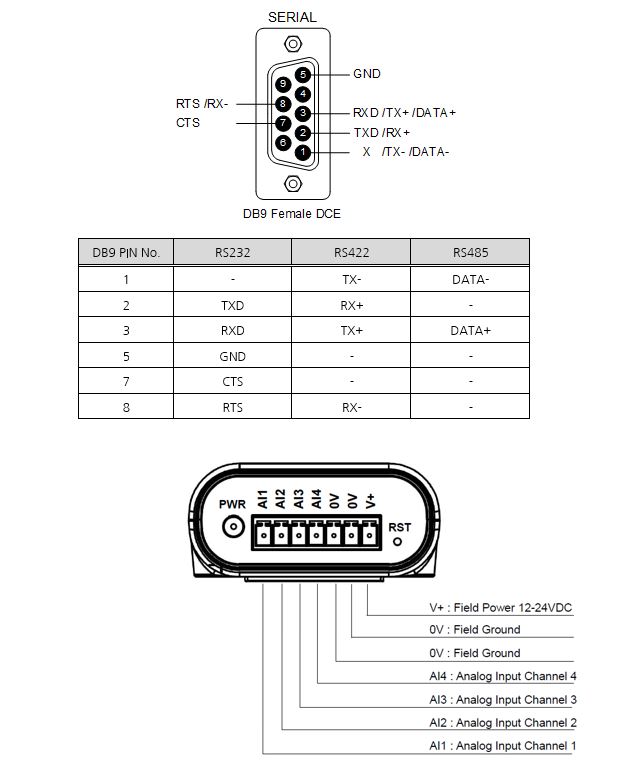

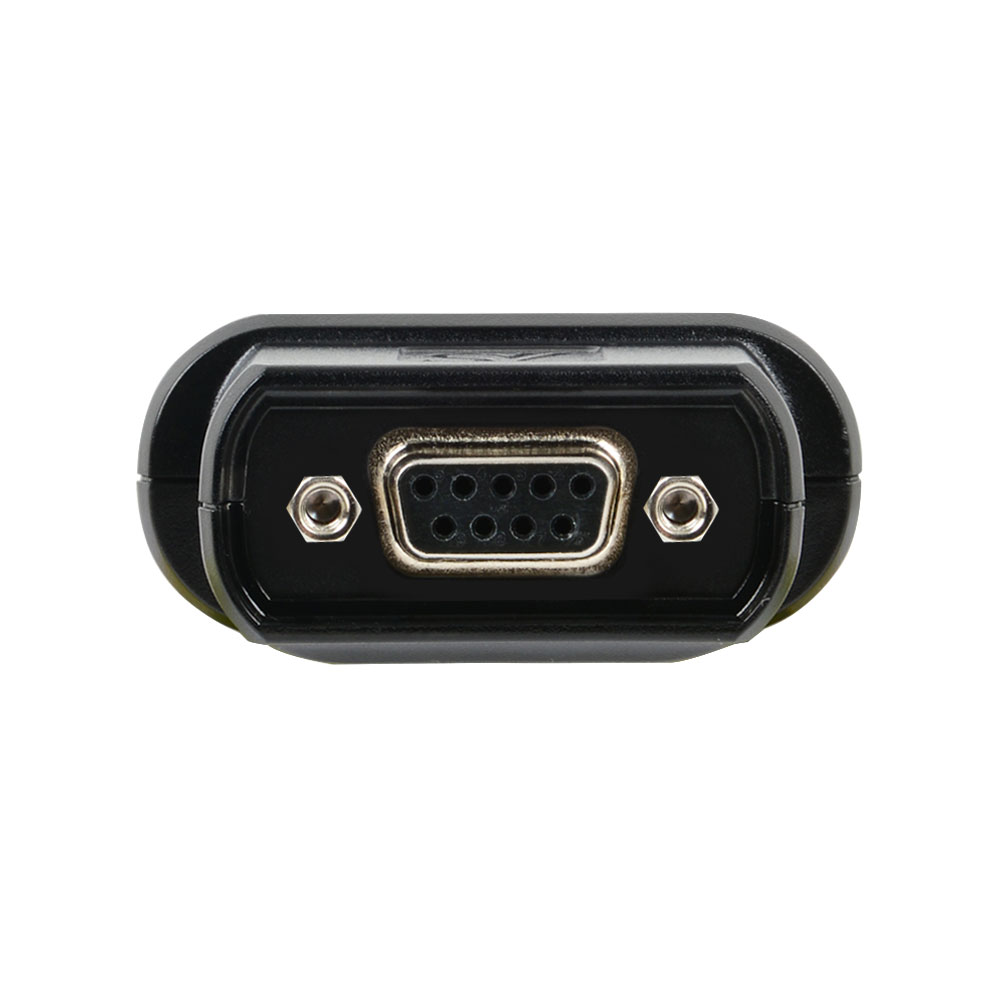

– Serial Interface Selectable: RS232 or RS422 or RS485
– Built-in ±15kV ESD Protection

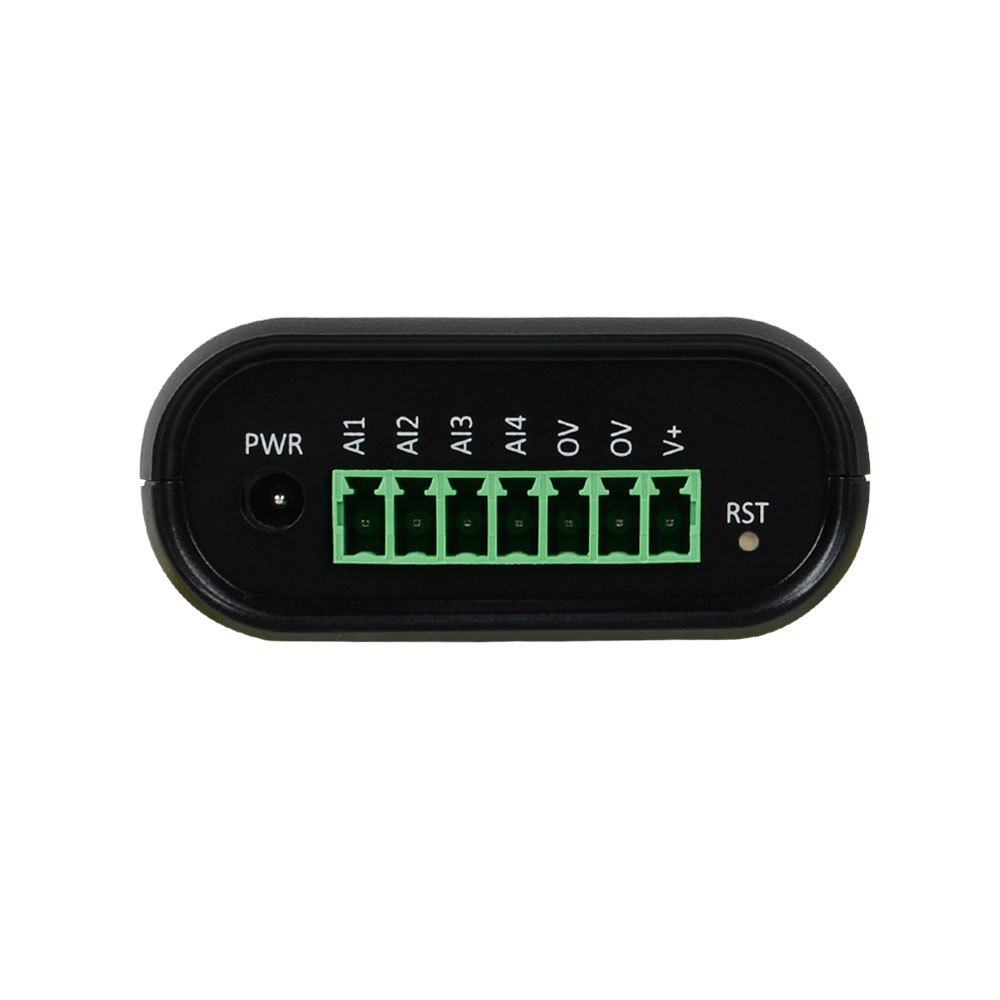

– 4 Analog Input Channel Selectable: Voltage or Current
– BASSO-IO Config Utility for Easy Setup
– Industrial Grade Operating Temperature: -40 to 85℃ (-40 to
85℉)
Overview
BASSO-1040DT/AI is a multifunctional device that converts real data, such as temperature and pressure measured at industrial sites in voltage and current forms into RS232, RS422, and RS485 and communicates.
In industrial sites such as factories, various analog data are generated for monitoring, measuring, and control, and are processed in various forms to collect and deliver them. Supporting universal RS232/422/485 serial specification and Modbus protocol, BASSO-1040DT/AI provides reliable communication for various user environments.
Various Applications
As connected to serial equipment of RS232, RS422 or RS485, it can be used for communication, control, and monitoring of various sensors and instruments in remote locations.
High Performance, High Reliability
Considering the unstable industrial sites, various preventive measures are applied against electrical shocks such as overvoltage input through the serial port or analog input and reliable parts are used in BASSO-1040DT/AI to provide excellent reliability and high performance.
Provides Software Utility
Free utility program available on BASSO-1040DT/AI.
BASSO-ioConfig : Simple setup utility for Windows.
