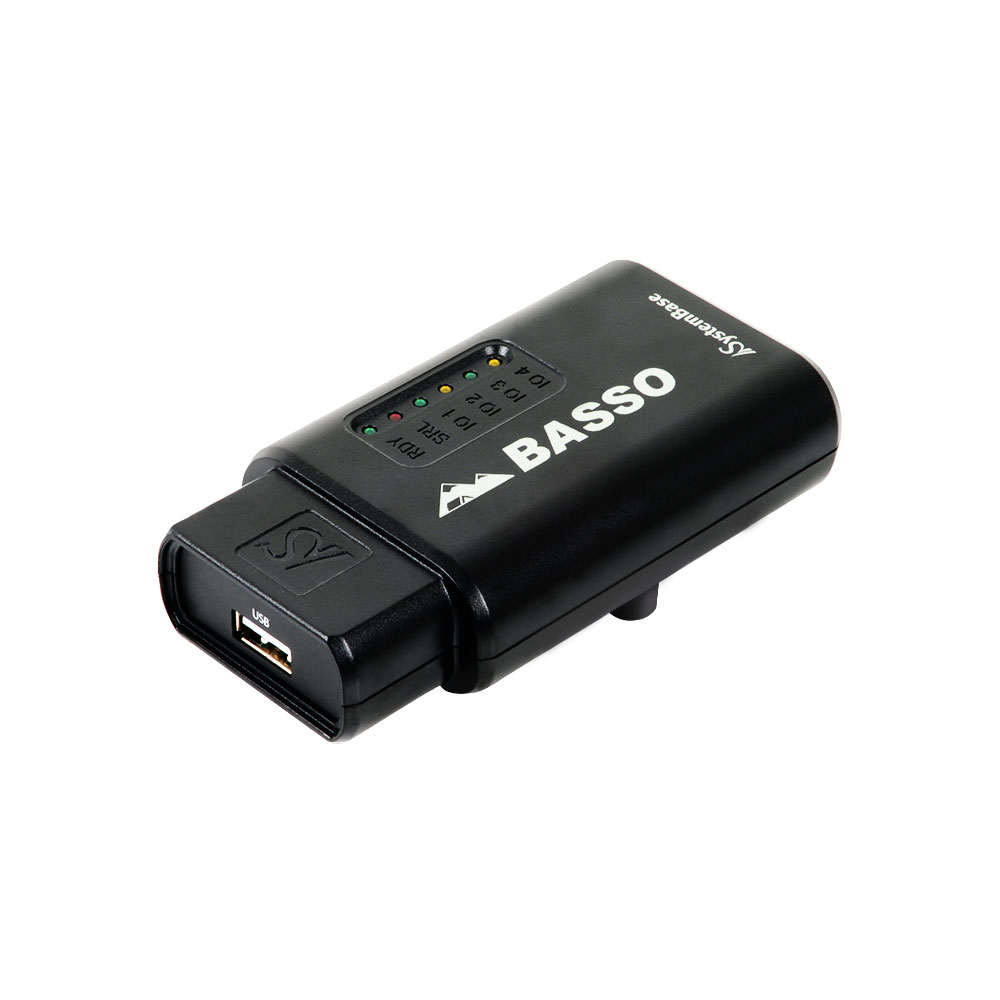

Analog Input to USB Converter
BASSO-1040UT/AI
– Supports Modbus Serial
– Analog Input to USB Converter

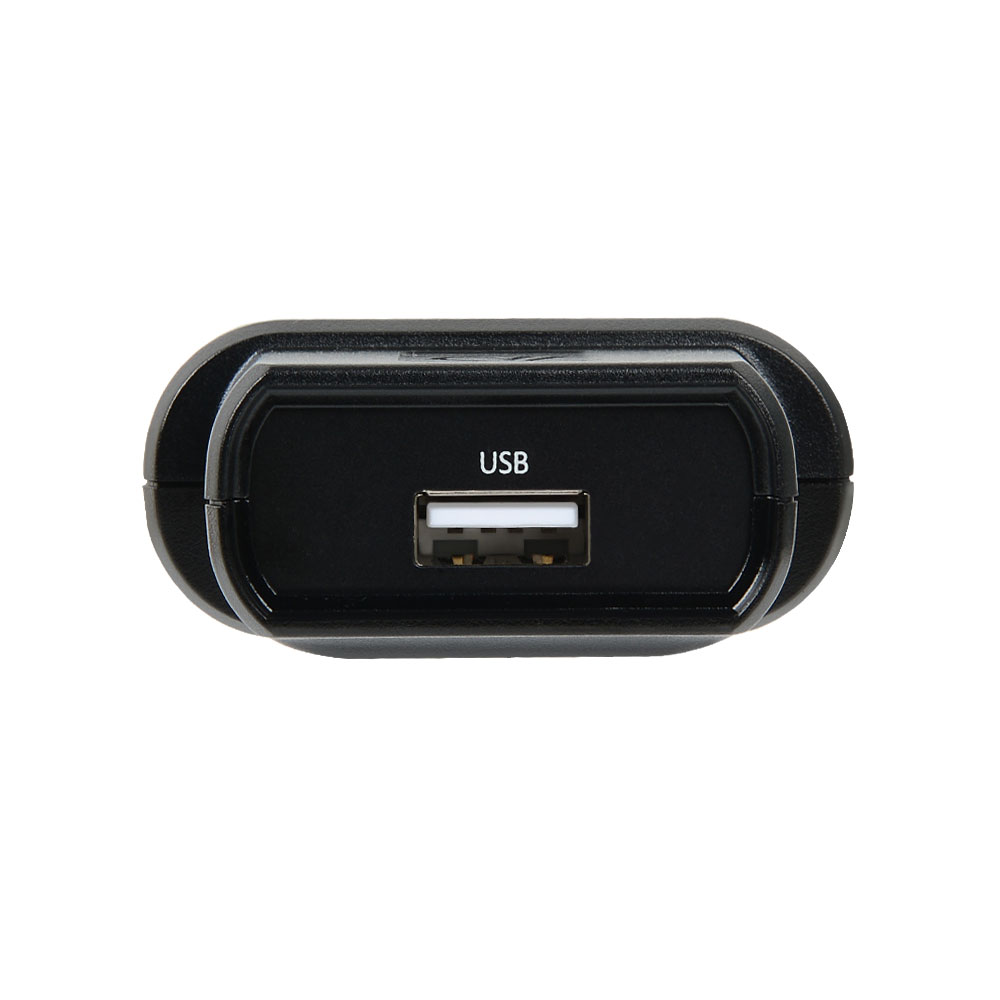

– USB 2.0 Type A connector
– Serial communication speed: Up to 921.6Kbps
– Built-in ±15kV ESD Protection

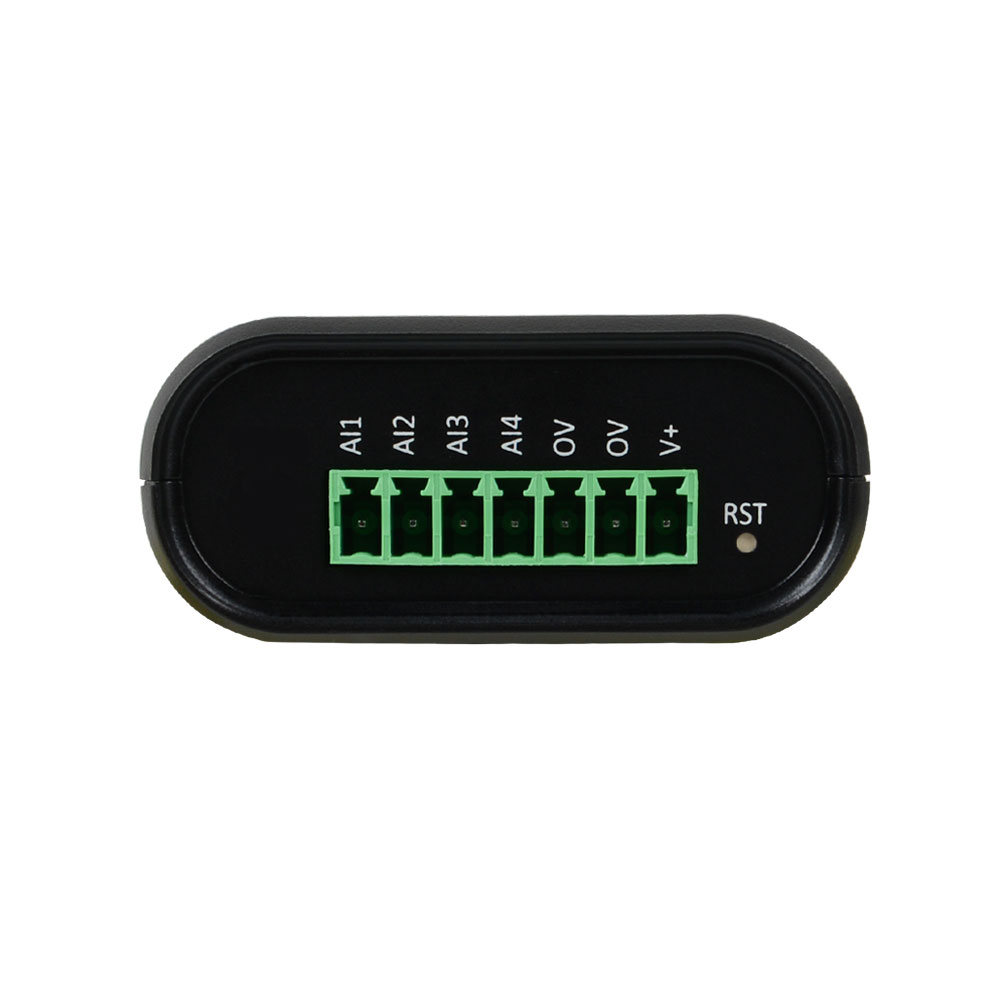

– Analog Input 4 CH : Voltage or Current Selectable

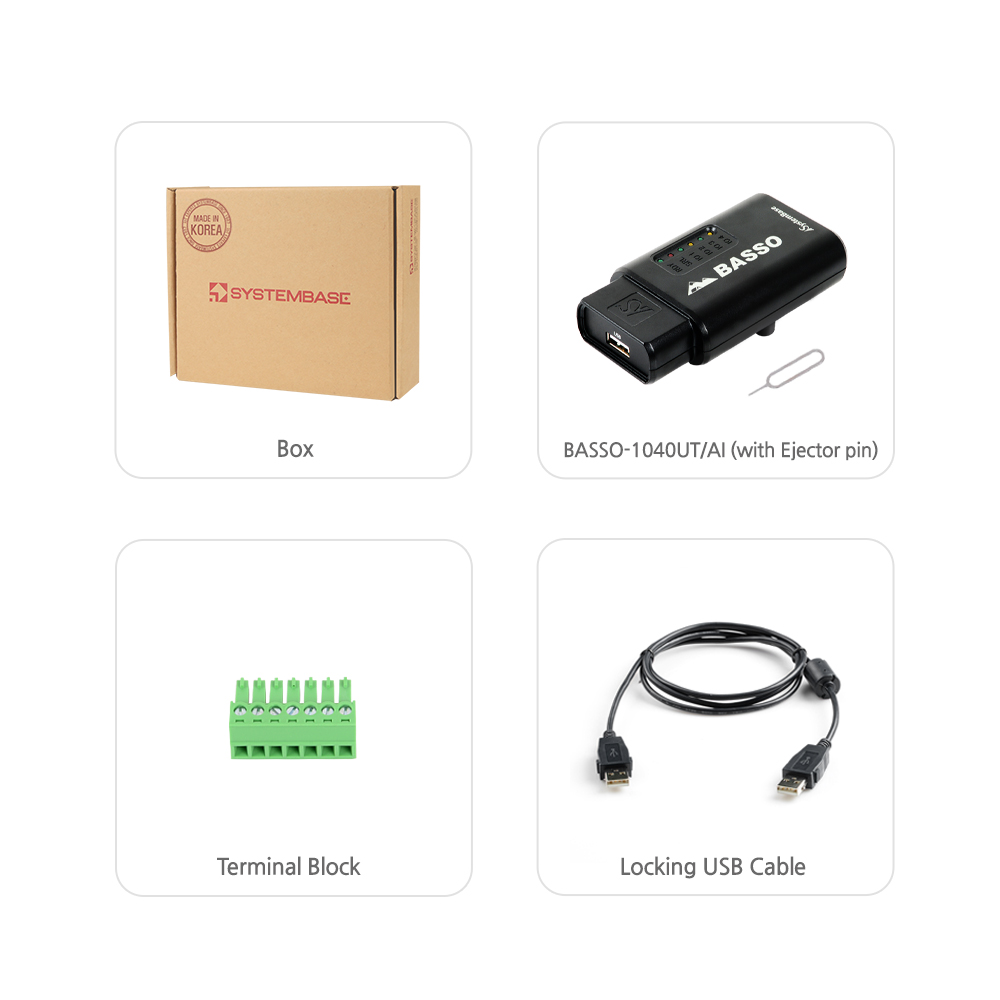

– Locking USB Cable Provided
– Utility BASSO-ioCofig Provided for Easy Setup
– Industrial Operating Temperature -40~85℃ (-40~185℉)
Overview
BASSO-1040UT/AI is a USB to AI(Analog Input) product that receives voltage/current values of analog sensor data such as temperature and pressure used in industrial sites and converts them into USB interfaces. In industrial sites such as factories, various analog data are generated for monitoring, measuring, control and so on. They are also processed in various forms to collect and deliver. The BASSO-1040UT/AI is a multi-functional device equipped with a USB interface and Modbus protocol that provides reliable communication capabilities for various user environment.
Apply to various applications
Connected to a USB port, users can easily use various sensor and instrumentation equipment from remote location for communication, control and monitoring.
High performance and reliability
BASSO-1040UT/AI, which is designed to take into account the characteristics of unstable industrial sites, it simultaneously provides high reliability and performance using reliable components and application of preventive measures against electrical shocks such as digital inputs and outputs and overvoltage drawn through USB port.
Support various software
BASSO-1040UT/AI provides a free utility program.
BASSO-ioConfig: A simple setup utility for Windows that provides easy setup.
