Accessory
CS-99/F-S
– Compatible with Standard DSUB-9(DB9) Connector
– Screwless Type 9-pin Terminal Block
– Built-in ±30kV IEC ESD Protection
– Supports Industrial Operating Temperature of -40 ~ 85℃ (-40 ~
185℉)
Overview

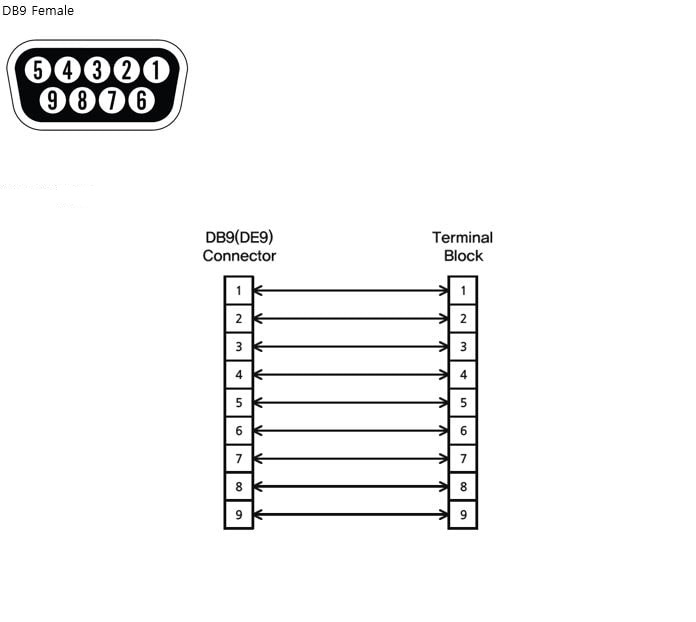

CS-99/F-S converts DB9 pin to 9-pin terminal block. DB9 connectors are mainly used in serial communications in various industrial environments. However, if a terminal block is required due to environment, CS-99/F-S can be used for easy wiring.
It also provides a reduction in external noise and protection for the surges which cause the system failure.
Supports Industrial Grade
CS-99/F-S supports industrial grade operating temperature of -40 to 85°C(-40 to 185℉) and up to 95% (RH, non-condensing) following international standard IEC 61000-4-2, IEC 61000-4-5, IEC 61000-4-5, and IEC 61000-4-5.
