Relay to Ethernet Converter

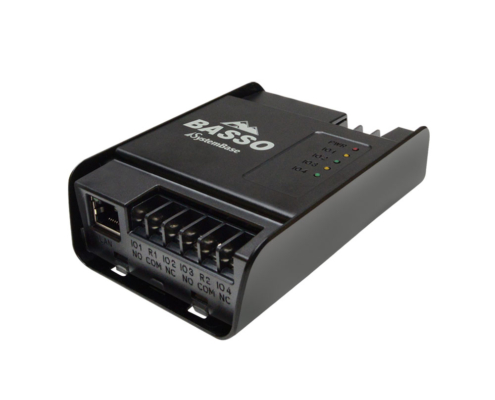

SG-3021TIL
– Relay to Ethernet Converter
– Remote Power Control Board
– Provides Relay 250VAC/30VDC(NO: 5A, NC: 3A) Purpose 2CH
– Built-in ±15 kV ESD Protection
– Relay control using COM Redirector™, TCP/UDP Socket,
Modbus TCP
– 10/100Mbps(Auto MDI/MDI-X) Ethernet(LAN)Port
– Provides a Relay test function using the Web
– Provides Equipment setting Web/SGConfig™ Utility for
Management
– Commercial Grade Operating Temperature: -40 to 85°C
Overview
SG-3021TIL is a device server module that can connect relay ports anytime, anywhere through the network. SG-3021TIL which is connected via Ethernet port, provides six contact relay ports to control external devices, providing signal transmission and circuit switching function. It is also a multi-functional module which provides VCP(Virtual Com Port) to control external devices through widely used serial utilities without program modification. SG-3021TIL can be utilized for controlling and automating various internal infrastructure and external facilities such as power management of hospital and plants, access control system of building and parking lots.
Provides Ethernet Based Serial Communication
SG-3021TIL enables easy control of equipment at remote locations connected through network anytime, anywhere.
High Performance and Reliability
This small-sized device server module provides both high performance and excellent reliability using protections against over-voltage, over-current protections and reliable parts in unstable industrial sites.
Supports Various Software Utilities
SystemBase provides various free utility programs available on SG-3021TIL.
COM Port Redirector: This is a virtual serial port program which easily creates virtual serial ports anywhere, providing serial communication without complex settings and software modifications.
SGConfig™: Provides the ability to set up the network environment for SG products and the operating environment for each serial port.
